Sanitary Elbow



Sanitary Elbow
Produce sanitary unions with DIN , SMS , 3A , ISO , .... standards . the forged parts are made from round steel. machined by CNC machines . which can be done at different surface as client' requirement .

Technical parameters

Size                                1"-4"   DIN10-DN200 17.2-114.3

Material                          304 304L 316 316L

Surfac qualities             y1.180 Grit

                                       2.240 Grit

                                       3.320 Grit

                                       4.420 Grit

                                       5.Unpolished


Ordering Specifications
Standard
Size
Material type
Surface qualities
Quantity


Example
Standard       Size     Material     Surface qualities      Quantity
 D.2wk-45º    DN40       304           2(240 Grit)               5000

 45º short elbow


KS-E2001

DN
A
R
T
10
12
26
1.5
15
18
35
1.5
20
22
40
1.5
25
28
50
1.5
32
34
55
1.5
40
40
60
1.5
50
52
70
1.5
65
70
70
2.0
80
58
85
2.0
100
104
104
2.0
125
129
129
2.0
150
154
154
2.0
200
204
204
2.0

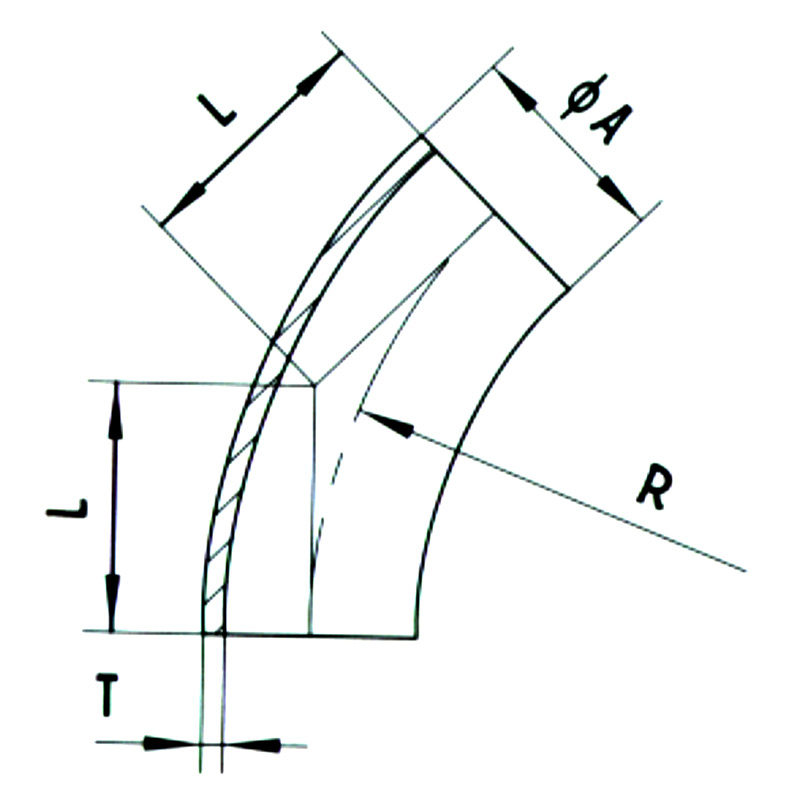

45º long elbow

KS-E2002

DN
A
R
L
T
10
12
26
38.5
1.5
15
18
35
39.5
1.5
20
22
40
41.6
1.5
25
28
50
60.7
1.5
32
34
55
62.8
1.5
40
40
60
64.9
1.5
50
52
70
69
1.5
65
70
80
73.0
2.0
80
58
90
92.3
2.0
100
104
100
96.4
2.0
125
129
187.5
135.2
2.0

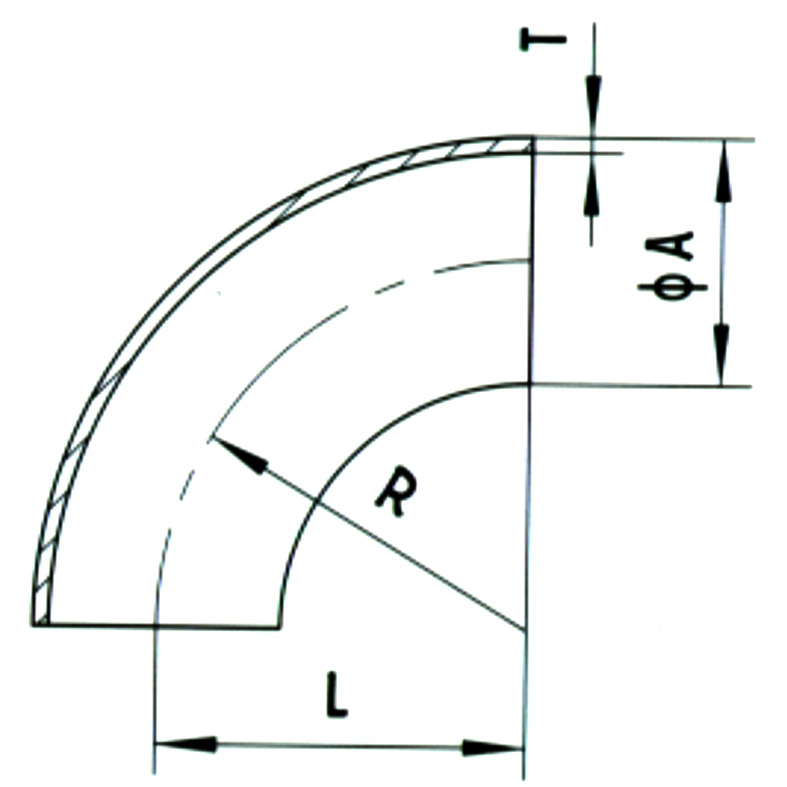

90º short elbow

A

KS-E2003

DN
A
R
L
T
10
12
26
26
1.5
15
18
35
35
1.5
20
22
40
40
1.5
25
28
50
50
1.5
32
34
55
55
1.5
40
40
60
60
1.5
50
52
70
70
1.5
65
70
80
80
2.0
80
85
90
90
2.0
100
104
100
100
2.0
125
129
187.5
187.5
2.0
150
154
225
225
2.0
200
204
300
300
2.0

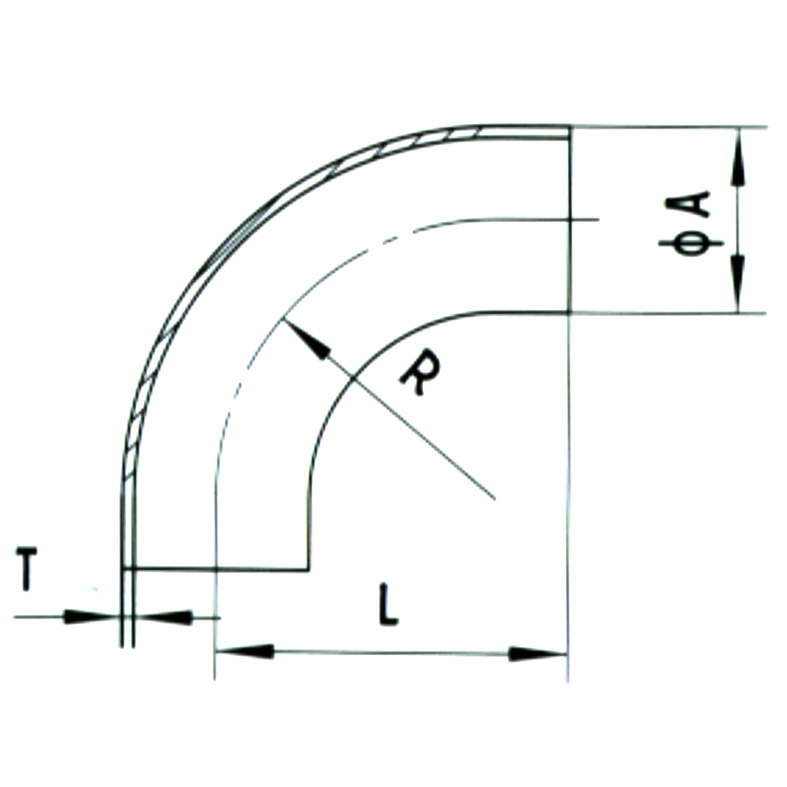

90º short elbow



KS-E2004

DN
A
R
L
T
10
12
26
51
1.5
15
18
35
60
1.5
20
22
40
65
1.5
25
28
50
90
1.5
32
34
55
95
1.5
40
40
60
100
1.5
50
52
70
110
1.5
65
70
80
120
2.0
80
85
90
145
2.0
100
104
100
155
2.0
125
129
187.5
245
2.0

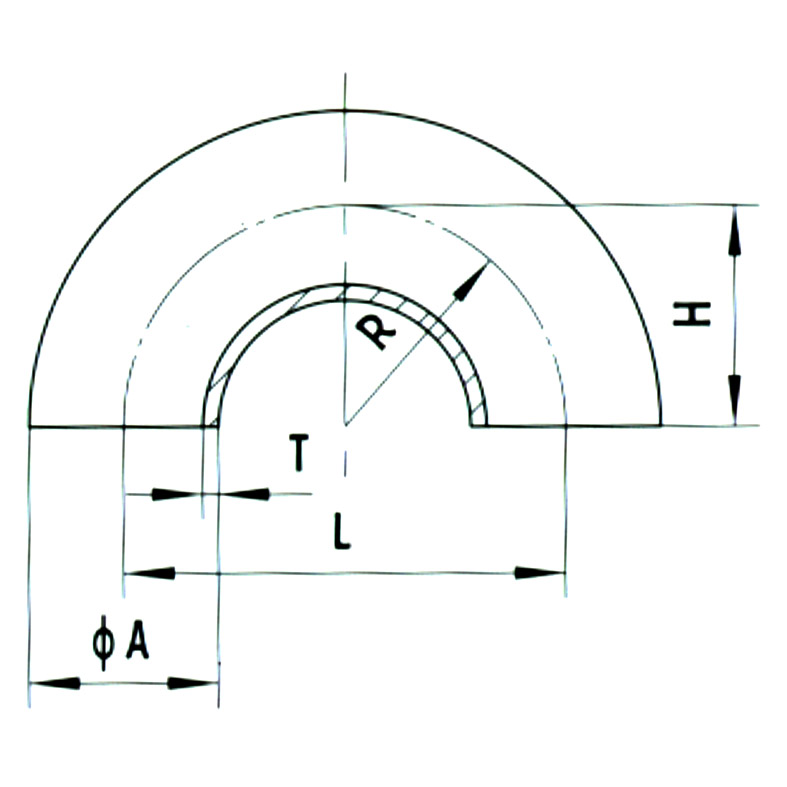

180º elbow

KS-E2005

SIZE
A
L
R
H
T
20
22
80
40
40
1.5
25
28
100
50
50
1.5
32
34
110
55
55
1.5
40
40
120
60
60
1.5
50
52 t
140
70
70
1.5
65
70
160
80
80
2.0
80
85
180
90
90
2.0
100
104
200
100
100
2.0
125
129
375
187.5
187.5
2.0
150
154
450
225
225
2.0

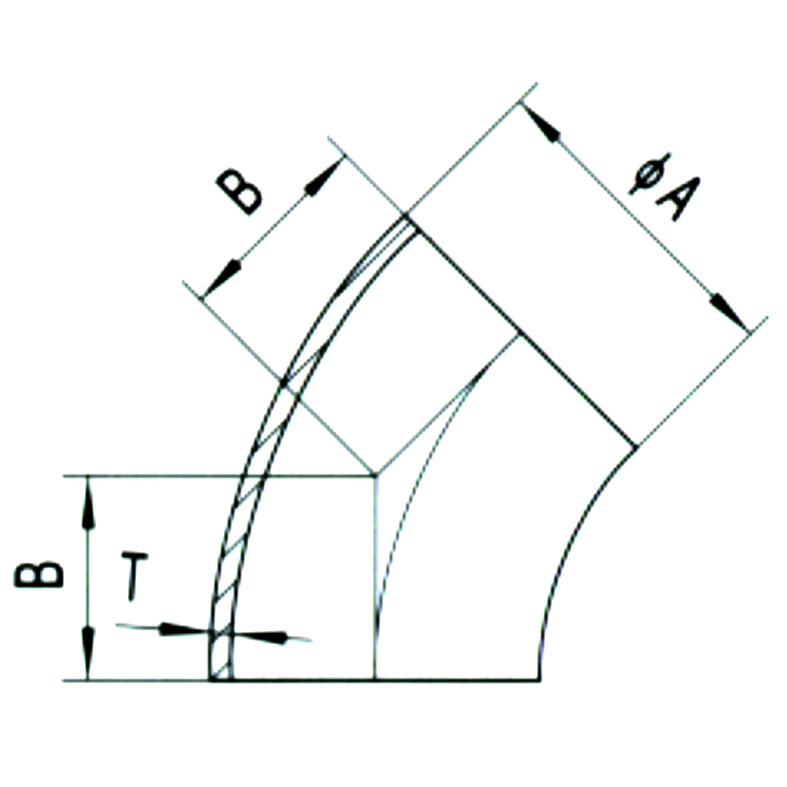

45º short elbow

KS-E2006

SIZE
A
B
T
25
25
15.53
1.50
38
38
23.61
1.50
51
51
31.69
1.50
63.5
63.5
39.45
1.50
76
76.1
47.28
2.0
104
104
63.0
2.0

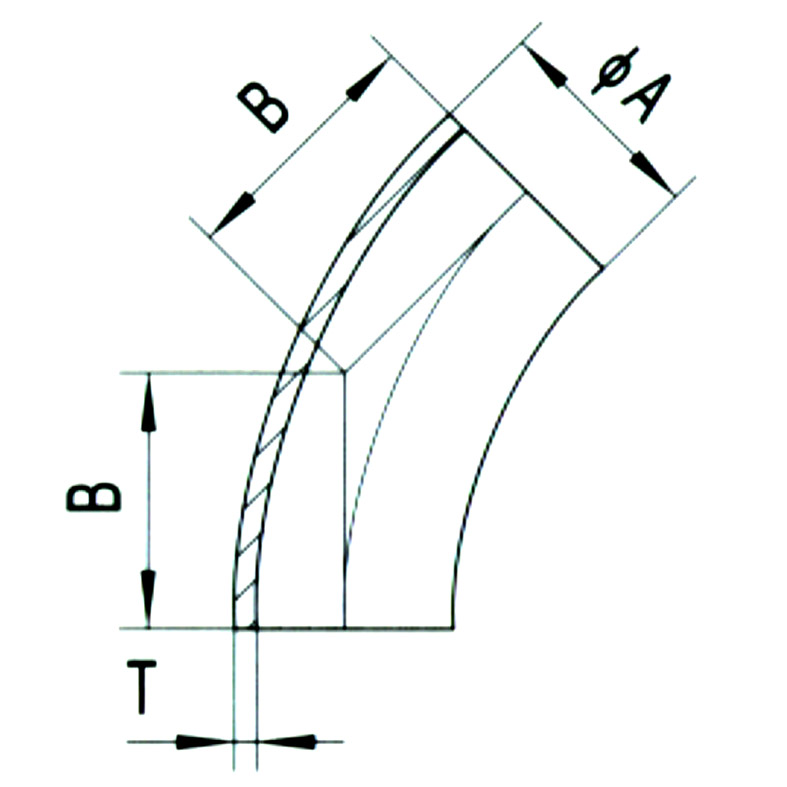

45º long elbow

KS-E2007

SIZE
A
B
T
25
25
42.53
1.50
38
38
56.61
1.50
51
51
68.69
1.50
63.5
63.5
78.45
1.50
76
76.1
85.28
2.0
104
104
103.0
2.0

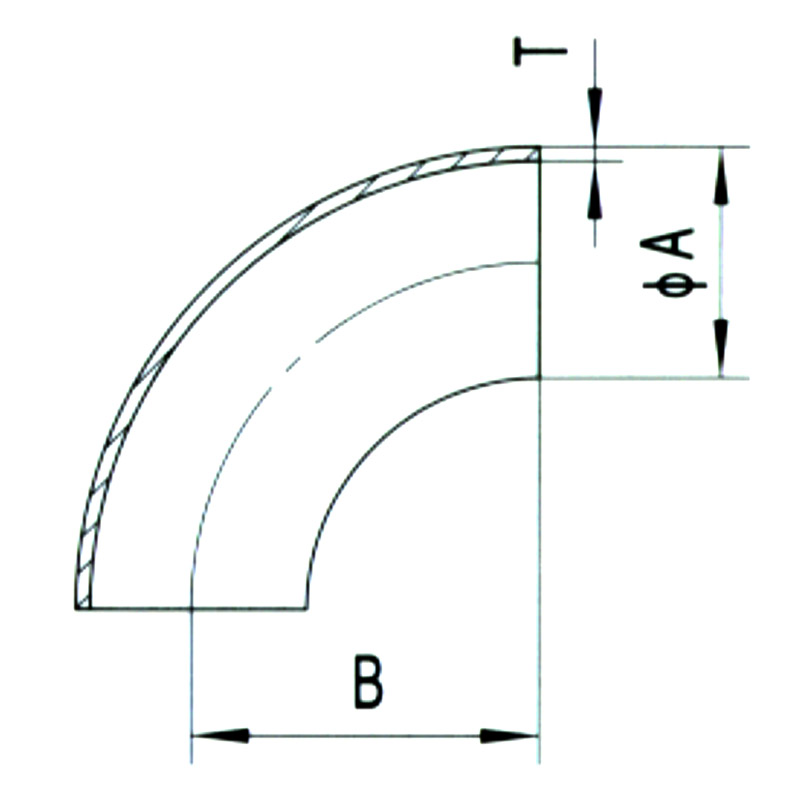

90º short elbow

KS-E2008

SIZE
A
B
T
25
25
37.5
1.50
38
38
57.0
1.50
51
51
76.5
1.50
63.5
63.5
95.25
1.50
76
76.1
114.15
2.0
104
104
152.1
2.0

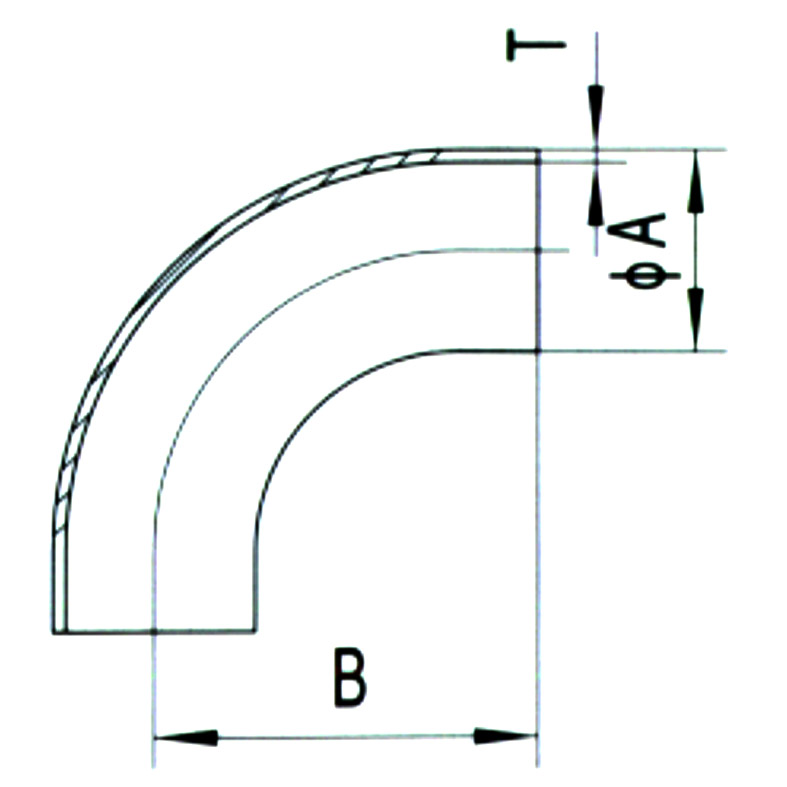

90º long elbow

KS-E2009

SIZE
A
B
T
25
25
52.5
1.50
38
38
72.0
1.50
51
51
91.5
1.50
63.5
63.5
113.25
1.50
76
76.1
132.15
2.0
104
104
172.1
2.0

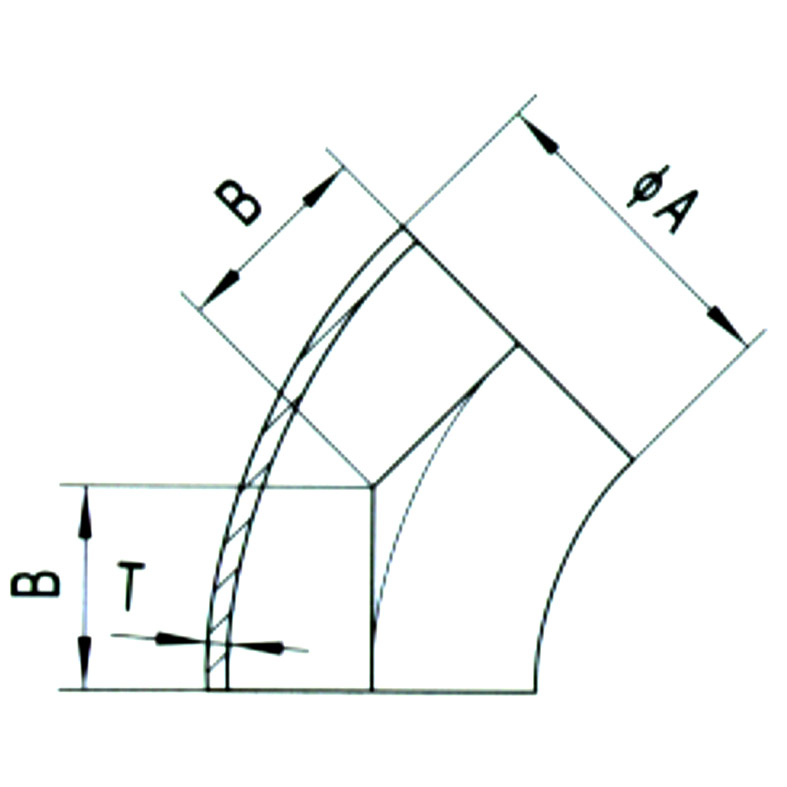

45º short elbow

KS-E2010

SIZE
A
B
T
1.0"
25.4
15.8
1.65
1.5"
38.1
23.8
1.65
2.0"
50.8
31.75
1.65
2.5"
63.5
39.6
1.65
3.0"
76.2
47.6
1.65
4.0"
101.6
63.5
2.10

45º long elbow

KS-E2011

SIZE
A
B
T
1.0"
25.4
30.2
1.65
1.5"
38.1
41.3
1.65
2.0"
50.8
58.7
1.65
2.5"
63.5
76.2
1.65
3.0"
76.2
93.7
1.65
4.0"
101.6
63.5
2.10

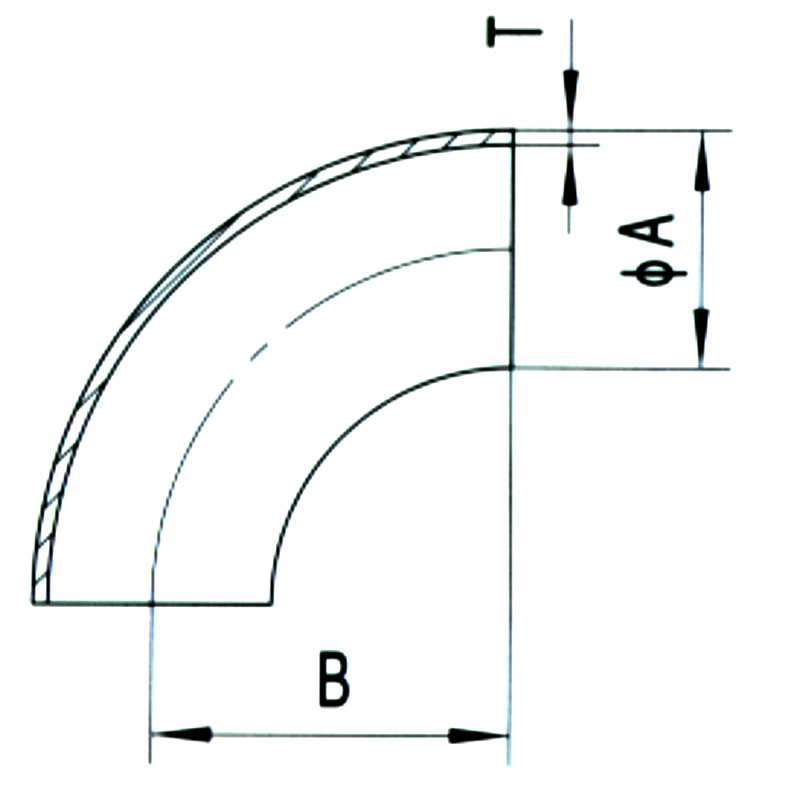

90º short elbow

KS-E2012

SIZE
A
B
T
1.0"
25.4
38.1
1.65
1.5"
38.1
57.2
1.65
2.0"
50.8
76.2
1.65
2.5"
63.5
95.25
1.65
3.0"
76.2
114.3
1.65
4.0"
101.6
152.4
2.10

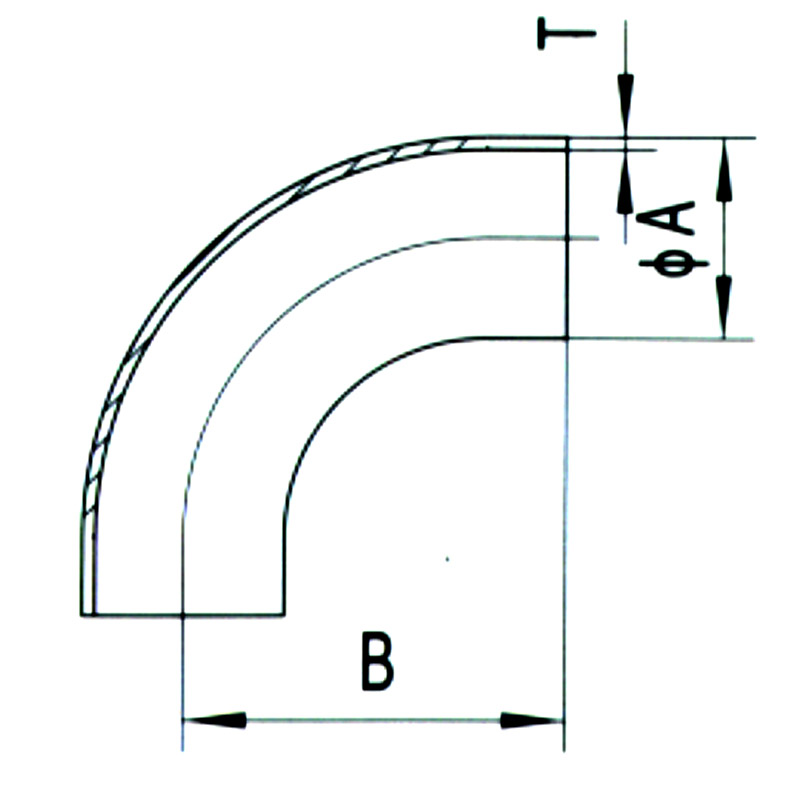

90º long elbow

KS-E2013

SIZE
A
B
T
1.0"
25.4
52.4
1.65
1.5"
38.1
74.6
1.65
2.0"
50.8
103.2
1.65
2.5"
63.5
131.8
1.65
3.0"
76.2
160.3
1.65
4.0"
101.6
211.1
2.10

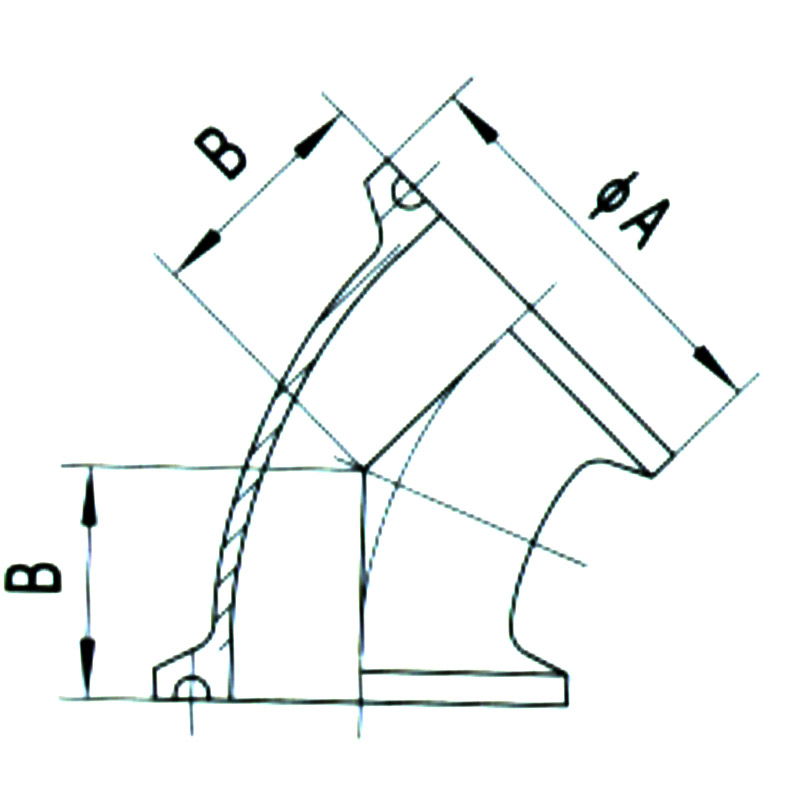

45º Clamp elbow

KS-E2014

SIZE
A
B
1.0"
50.5
28.5
1.5"
50.5
36.5
2.0"
64.0
44.45
2.5"
77.5
52.3
3.0"
91.0
60.3
4.0"
119.0
76.2

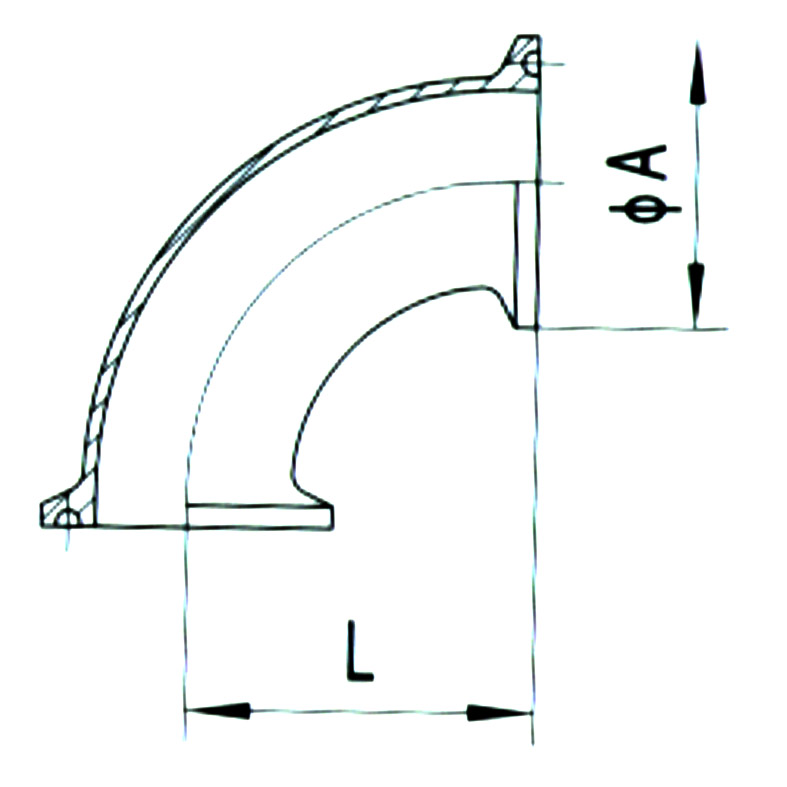

90º Clamp elbow

KS-E2015

SIZE

A
B
L
1.0"
50.5
30.2
50.8
1.5"
50.5
41.3
69.9
2.0"
64.0
58.7
88.9
2.5"
77.5
76.2
107.95
3.0"
91.0
93.7
127.0
4.0"
119.0
63.5
168.2
